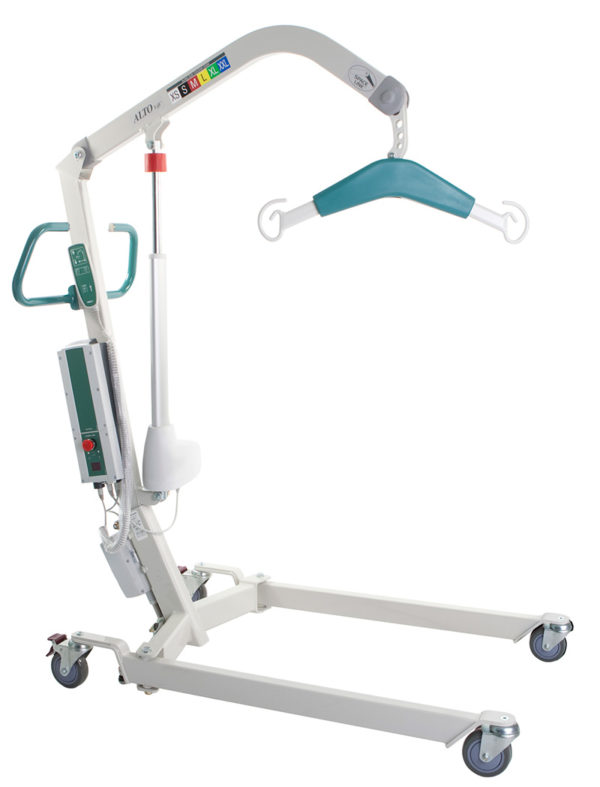

Designed as a heavy duty mobile client lifter for hospital, residential and community care.
- The Alto is ideal for transferring from bed to chair or toilet
- Complemented by a full range of client slings, covering all sizes from extra small to XX large
- Suits Loop, Pivot and Pivot Care E clip slings
- Compatible with standard spreader bar or tilt/pivot frame
- With a small footprint, coupled with light weight, the Alto is highly manoeuvrable
- Options: Tilt Pivot Frame, 4-point Yoke, Scales (integrated or supplied as an optional extra with conversion kit)
- Australian made
*Supplied with standard yoke
Product Specifications
- Base Length: 115cm
- External Base Width Closed: 70cm
- External Base Width Open: 113cm
- Internal Base Width Closed: 60cm
- Internal Base Width Open: 103cm
- Base Width Adjustment Electric
- Under Bed Clearance: 13cm
- Minimum Height Yoke: 30cm
- Maximum Height Yoke: 192cm
- Average Lift Range* :162cm
- Lifter Weight: 46kg
- Minimum Storage Height: 135cm
- Under Base Height: 5.5cm
- Maximum Hoist Reach: 106cm
- Minimum Hoist Reach: 61cm
- Hoist Reach at Maximum Height: 51.5cm
- Mass of Heaviest Part: 24kg (Mast assembly)
- SWL: 200kg
* With general purpose large sling.
